任意波形发生器AWG-5000

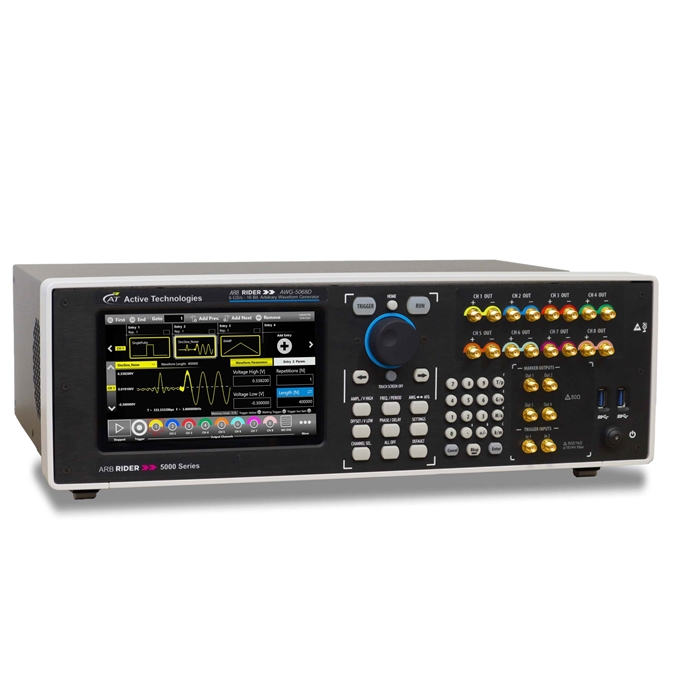

ARB RIDER AWG-5000 ARBITRARY WAVEFORM GENERATOR
World’s Fastest 16 Bit Arbitrary Waveform Generator
The ARB Rider AWG-5000 is the world’s fastest 16 bit Arbitrary Waveform Generator: 6.16 GS/s real time update rate (12.32 GS/s in RF mode) and 16 bit vertical resolution. Available in 2, 4 or 8 channel models, Arb Rider AWG-5000 is the fastest AFG (Arbitrary Function Generator) in the world, reaching up to 2 GHz sine wave. Thanks to Simple Rider software, AWG-5000 offers best in class performances and extremely easy to use interface.
2 GHz bandwidth, up to 5Vpp output range and up to 4 Gsample memory depth, makes the AWG-5000 is the ideal choice for Physics Experiments, Quantum computers, and Aerospace & Defense applications.
Thanks to the integrated up conversion functionality (RF MODE) it’s possible generate signals up to 6 GHz
Pulses for All Your Needs
Whether it is generating a complex pulse train, a series of radar pulses, pulsed RF signals with impairments, Gaussian pulses,multi-level pulses, double pulses for IGBT/Mosfet experiments, pulses for Advanced Research and Quantum computing, the AWG-5000 is the ideal partner for all your most complex tests and cutting-edge applications.
Highlights
- Up to 5Vpp into 50 Ohm Pulse Amplitude with ± 2.5V hardware offset
- 110 ps Rise and Fall Time
- Minimum Pulse Width: 230 ps
- Shape easily your Pulse Transitions
Quantum Computing and RF Wireless
The AWG-5000 is the right choice for the frontier of science and technology experiments and cutting-edge challenges like Quantum, High Energy Physics, Optical and RF Wireless Communication.
The AWG-5000 Series instrument can create virtually any signal – analog or digital, ideal or distorted, standard or custom. You can easily build complex RF/IF/IQ waveform or generate serial data streams on your PC and transfer it to the AWG.
Highlights
- Minimum delay between Trigger In and Analog Out
- Up to 32 analog channels and 128 digital channels fully synchronized
- Built-in sequencer with conditional/unconditional/dynamic jump features, two independent Trigger Inputs, up to 4 Marker outputs
Radar, LiDAR Design and EW
Wideband radar and electronic warfare systems need high fidelity signals to replicate real-world situations and complex environment scenarios.
Moreover, nowadays automotive solutions need to create accurate and reliable tests to prove safety under a variety of test conditions is key: LiDAR is one of the strategic components for these kinds of solutions.
Key Features
- Generate Radar test signals with excellent spurious performance
- Create Electronic Warfare complex scenarios with up to 16384 sequencer entries and Advanced Sequencer conditional/unconditional jumps.
- Build up LiDAR signal testing for aerospace & defense, automotive and mobile devices solutions
- Create test waveforms using the Waveform Editor software or import them using third-party applications like MatLab, Labview, .NET languages, etc.
Waveform Editor: Powerful and Easy
The Waveform Editor allows you to create easily the most complex shapes for your radar pulses, physical research pulses, real-world signals, and complex environment signals. It is included in the standard software package.
Key Features
- Generate easily the most complex analog and digital signals
- Create your waveforms remotely on your PC
- Full integration with the True-Arb software
Configure your new AWG-5000 online and request a quote:
