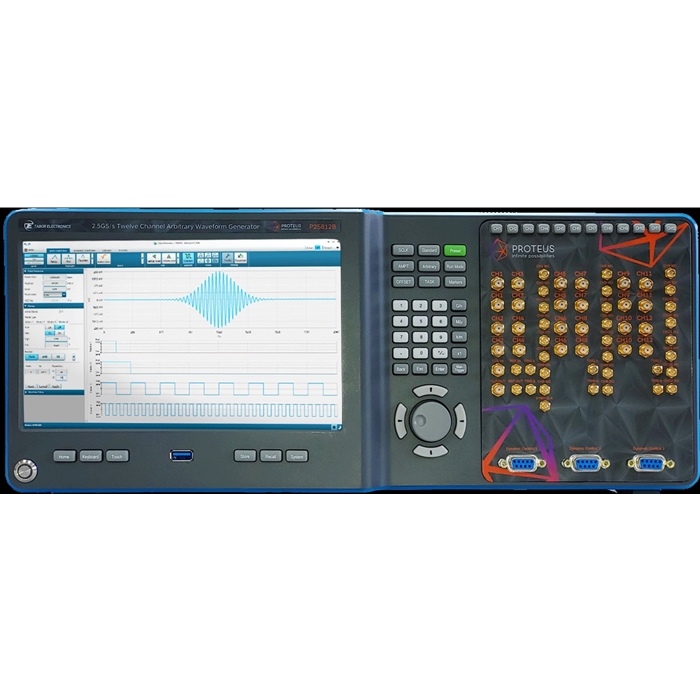

The benchtop version of the Proteus series offers up to 12 channels in a 4U, 19” box. With a 9” touch display and on-board PC the benchtop platform eliminates the need for an external PC.
Users can program the instrument from the on-board PC using various programming environments such as MATLAB, LabView, Python, and more. An advanced solution for communications where new transmission standards that fuel the next generation of connectivity, such as 5G, WiFi-6, and UWB, all rely on utilizing significant amounts of spectral bandwidth.
| Product | Channels | Sample Rate | Vertical Resolution | Bandwidth | Memory | Max. Amplitude |
|---|---|---|---|---|---|---|
| 12 | 1.25GS/s | 16 Bits | 2.5GHz | 2GS | 50 mVpp to 1.3 Vpp | |
| 2 | 1.25GS/s | 16 Bits | 2.5GHz | 1GS | 50 mVpp to 1.3 Vpp | |
| 4 | 1.25GS/s | 16 Bits | 2.5GHz | 1GS | 50 mVpp to 1.3 Vpp | |
| 8 | 1.25GS/s | 16 Bits | 2.5GHz | 2GS | 50 mVpp to 1.3 Vpp | |
| 12 | 2.5GS/s | 16 Bits | 5GHz | 2GS | 50 mVpp to 1.3 Vpp | |
| 2 | 2.5GS/s | 16 Bits | 5GHz | 2GS | 50 mVpp to 1.3 Vpp | |
| 4 | 2.5GS/s | 16 Bits | 5GHz | 2GS | 50 mVpp to 1.3 Vpp | |
| 2 | 9GS/s | 8 Bits | 8GHz | 4GS | 50 mVpp to 1.3 Vpp | |
| 4 | 9GS/s | 8 Bits | 8GHz | 4GS | 50 mVpp to 1.3 Vpp | |
| 6 | 9GS/s | 8 Bits | 8GHz | 4GS | 50 mVpp to 1.3 Vpp | |
| 8 | 2.5GS/s | 16 Bits | 5GHz | 2GS | 50 mVpp to 1.3 Vpp |
Data Sheet
